9.0
|
WIN XP/2K/NT/ME/98 and VISTA / 7 32 and 64-bit compatible
|
|
Build / Extract Cards - available only on the encoders we offer! Custom
Tracks - able to to add alphanumeric characters on all Tracks.
|
El
departamento de ventas esta disponible para ayudarle en Espanol!
|
NEW!
Exeba®-Comm9.0™ Professional with hardware key - no unlocking required |
Exeba®-COMM™
- Full Version (with database)
All Magstripe Encoders and All Portable Readers compatible with this software with hardware key - no unlocking required |
$799
|
|
Exeba®-Comm9.0™
Professional |
Exeba®-COMM™
- Full Version (with database)
Includes 3 software licenses All Magstripe Encoders and All Portable Readers compatible with this software $150.00 Off with any hardware purchased or Upgrade! |
$450
|
|
Exeba®-Comm9.0™
Basic |
Exeba®-COMM™
Software
(limited technical support; no database; no password reset for any portable readers) FREE with any compatible hardware purchased from Escan Tech Corp / Incode Corp. / Authorized Resellers |
Free
|
|
Upgrade
|
Please
contact your sales rep!
|
|
NOTE: Exeba-COMM Lite &
Classic versions have been discontinued.
 |
| Exeba®-COMM™ magnetic stripe encoder / reader software is a powerful program designed to work with the hardware offered by Escan Technologies and Incode Corp. It runs under Windows operating systems: NT,2000,XP,VISTA , 7 32 and 64-Bit, NT and 2000. |
| Software General Features: |
|
>
Developed for Windows 2000 / NT / XP / Vista / 7
32 and 64-Bit
|
| > Powerful Database |
|
>
Duplicating
magnetic stripes
|
|
>
Multiple
card data capture
|
|
>
Secure-erase
of magnetic stripe data
|
|
>
Search
by First/Last/Name, Account # or Swipe search
|
|
>
Has
a built-in text editor
|
|
>
Polls
data in both batch and on-line modes
|
|
>
Saves
data in a database or in a text file
|
|
>
Gives
the user the flexibility to create multiple databases
|
|
>
Wipe
Card function can be used to quickly erase magnetic stripe card
data
|
|
>

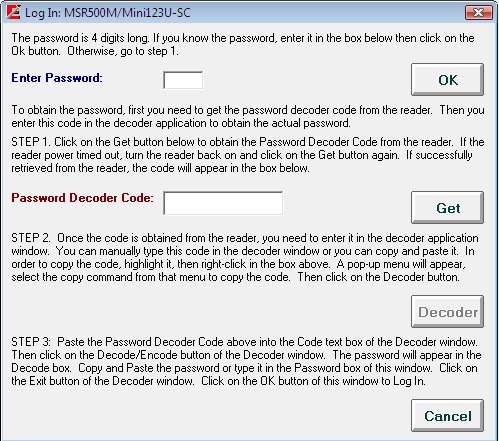

Provides
database security: setup a new password or change an existing
one
|
|
>
Import
/ export data to or from a text file
|
|
>
Data
reports are accessible by date range
|
|
>
Select
different communication ports and port settings, adjust delays
and time-out
according to your hardware requirements
|
|
>
Encrypted
system files prevent unauthorized viewing or tampering of program
configuration
|
|
>
Send
different serial commands to the hardware
|
|
>
ANSI
/ ISO card types and formats supported by default
|
|
>
Built-in
support for portable hardware password protection
|
|
>
Compatible
with multiple hardware types
|
|
>
Directly
communicate with any USB / RS-232 (serial) connected device
|
|
New
Features
|
|
|
In general the following features were added: |
|
 |
The
following new functions were added to the ENCODER and many enhancements
were made to the existing features:
|
 |
The
ability to read and write a Non-ISO standard card data.
|
|
Capable
of generating multiple valid account # - using financial standard
format!
|
|
Buliding
/ Extracting tracks
|
|
Now
you can view, create, update, and print the card data at any time
without requiring an encoder to be connected and initialized.
|
|
The
following fields were added to the card data: creation date, issue
date, member since, expiration status, and extra info.
|
|
Based
on a certain criteria you will be able to check the validity of
an account # and to determine what the next account # should be.
|
|
New
options were added to the Incremental Encoding function.
|
|

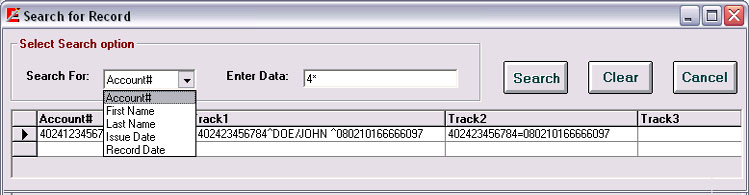

In addition
to the existing card data search, the user can now search by Issue
Date and Record Date. You can also use wild cards when
searching by a name or account #.
|
|
The
Wipe Card Data function was changed to allow you to erase
multiple cards.
|
|
The
Abort command was added to several encoder types.
|
|
When
the application first starts, the encoder coercivity setting is
displayed in the status bar on the main window. NOTE: When the
encoder is turned ON or OFF, the coercivity setting automatically
defaults to high.
|
|
The
Card Type Setup function is added to allow the user to
define a card template. This will prevent errors made during encoding.
It will also ensure that all the required fields are included.
|
|
The
ability to select the Data Density when writing to a card
in Non-ISO standard.
|
|
The
ability to read and save multiple cards.
|
|
|
The
following are improved features in the DATABASE:
|
|
Clear
Password, Retrieve Password, Convert Database,
and Merge Database files.
|
|
Able
to print TO and FROM the database
|
|
The
New Save to Database function allows you to select the
records before saving and eliminates duplicate records.
|
|
|
The
following features were added for all the PORTABLE READERS:
|
|
Enhanced
polling functions and error checking.
|
|
Able
to poll data from a single track.
|
|
Get
Serial # feature (TA and PMR readers only)
|
|
Set
Auto Power Off
|
|
No more
loss of data, when there is a corrupted record in the reader memory.
|
|
Several
programming commands were implemented for various reader types:
i.e., turning Beeper On/Off.
|
|
|
The
new functions that were added to support the KB2000 KEYBOARD READER:
|
|
The
Poll Reader function captures the data from the reader
and displays it as is or in a tabular format.
It also saves the data in a text file or database. |
|
The
user can select which track data should be transferred from the
reader and it also allows for the enabling or disabling of the
start and end sentinel.
|
|
|
The
new PRINT QUERY window allows you to:
|
|
Print
a simple listing or detailed report.
|
|
Select
all data, by Account #, Prefix, or Date Created
range… etc.
|
|
Include
or exclude Expired accounts.
|
|
Sort
by Account #, Record Date or Prefix.
|
|
|
|
| MAGSTRIPE ENCODERS: | |||
 HiCo/LoCo all tracks MSE-630A |
 HiCo/LoCo all tracks MSR106/206 |
HiCo/LoCo all tracks MSE-750 / MSE-630A |
 HiCo/LoCo all tracks MSRW / MSR606 |
 HiCo/LoCo all tracks KDT4389 - Motorized |
 HiCo/LoCo all tracks MT-95 Stand-Alone |
 HiCo/LoCo all tracks I380 - Motorized |
 HiCo/LoCo all tracks MSR505C |
| MAGSTRIPE PORTABLES: | |||
 512K all tracks MSR500M / MINI123 |
 512K all tracks MINI123X |
 512K all tracks MINI 400 |
 512K all tracks MINI 600 |
 512K all tracks MSR500 |
 32K all tracks MSR300 |
 512K all tracks MPR3000 / SPDC |
 256K all tracks MPR2000 / MPDC |
 256K all tracks MPR1000 / PDC |
 256K tracks 1&2 PMR202 / TA48 |
 32K tracks 1&2 PMR102 / TA90 |
 512K all tracks TA32 |
|
|
 KB2000 all tracks Keyboard Reader |
RS2000 all tracks Serial Reader |
Bug/Suggestion/ Request Form |
EXEBA-COMM™
User's Manual PDF (1.82MB)
All
You Need To Know About Magstripe Guide
to Magnetic Encoding on Cards
Magnetic Track Specifications
California
Driver License's Format (DMV)
Driver
License's Format Recommended by (AAMVA)
Credit
Card Format
